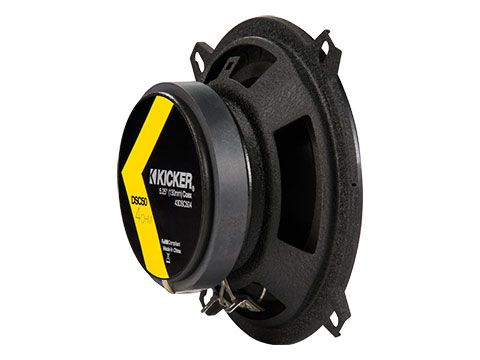

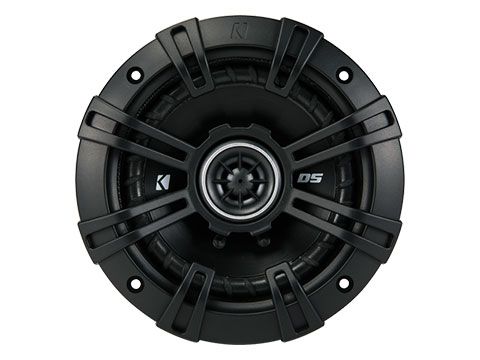

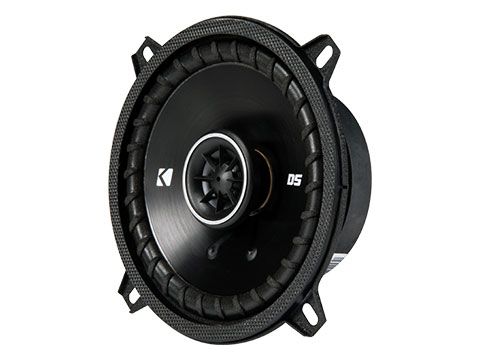

DS Series 5.25" Coax
The DS 5-1/4-Inch Coaxial Speakers are a perfect upgrade for your car doors.
A stamped steel framework supports a ribbed, UV-treated foam surround and rigid polypropylene cone with EVC™ (Extended Voice Coil) technology, for excellent sound – even with a factory radio.
These DS speakers work best with 50 watts of recommended power. See below for more details.
Specifications
Model |
DSC50
|
Speaker Design |
2 - Way
|
Woofer [in, mm] |
5-1/4, 130
|
Mid [in, mm] |
n/a |
Tweeter [in, mm] |
1/2, 13
|
Rated Impedance [Ω] |
4 |
Peak Power Handling [Watts] |
200 |
Continuous Power Handling [Watts RMS] |
50 |
Sensitivity [1W, 1m] |
90 |
Frequency Response [Hz] |
45-20k |
Mounting Hole Diameter [in, mm] |
4-1/2, 115
|
Top Mount Depth [in, mm] |
1/4, 7
|
Bottom Mount Depth [in, mm] |
1-3/4, 45
|
Tweeter Protrusion [in, mm] |
0 |
Grilles |
Yes |
Tweeter Magnet Material
|
Neodymium |
Tweeter Dome Material |
PEI (polyether imide)
|
Tweeter Design |
Balanced dome
|
Woofer Cone Material |
Polypropylene
|
Woofer Surround Material |
Polyester foam
|
