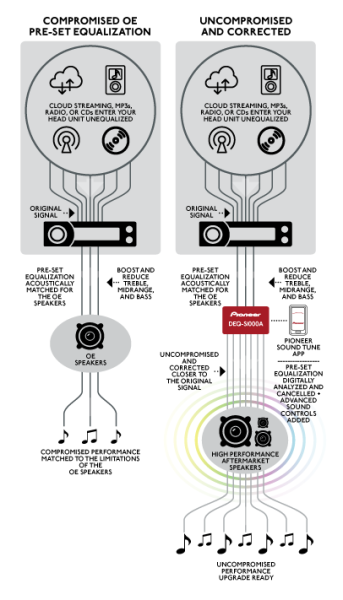

Universal Sound Processor for integrating factory installed head units (OE sources) with aftermarket amplifiers and speakers

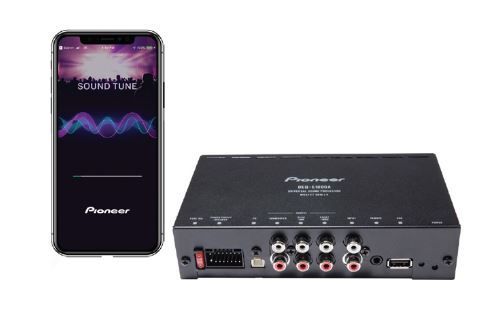

• Smartphone controlled via the Pioneer Sound Tune app for touchscreen system setting and control¹

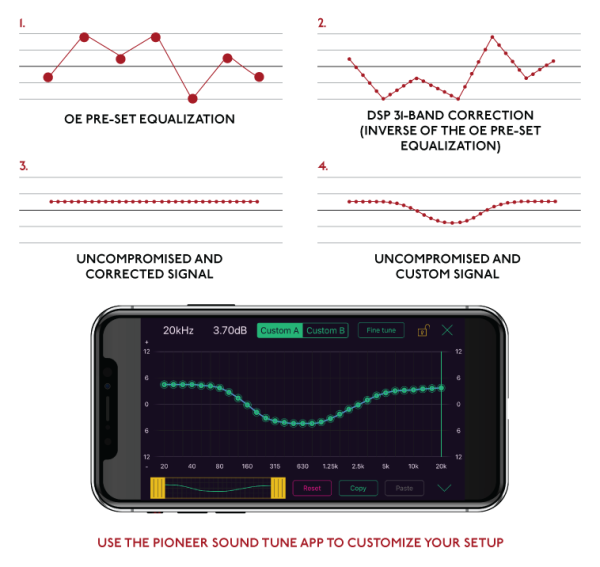

• 48-bit dual-core DSP-based signal processing and pre-set EQ correction
• Stereo high level / low level inputs for integration flexibility
• Hi-Volt RCA Preouts x 3 (4v) + MOSFET 50W x 4 internal amplifier

• MAIN FEATURES

• Pioneer Sound Tune App Compatible

• USB Input1

• Maximum Power Input 4 x 50 W

• Frequency Response10Hz to 20kHz

• S/N Ratio105dB

• Max. Current Consumption10A

• Chasis Size (W x H x D)6-3/4" x 1-5/8" x 3-3/4"

• Unit Weight1lb 4.8oz

• AUDIO

• Equalizer13-Band Graphical EQ, (31-Band with Pioneer Smart Tune app)

• MOSFET50 W x 4 Amplifier

• Network Mode3-Way Network Mode

• Listening Position Selector

• Manual TA (Time Alignment)

• High Pass Filter

• Low Pass Filter

• Subwoofer Control

• RCA Pre-Outs3 (4V)

• Processor Input TypeHigh Level/Low Level

• Number of Processor Input Channels2

• High Voltage Output (4V)

• Advanced Audio FeaturesExclusive Designed Audio Parts.

• FLAC

• RCA Terminals

• Speaker Line Input Sensor
