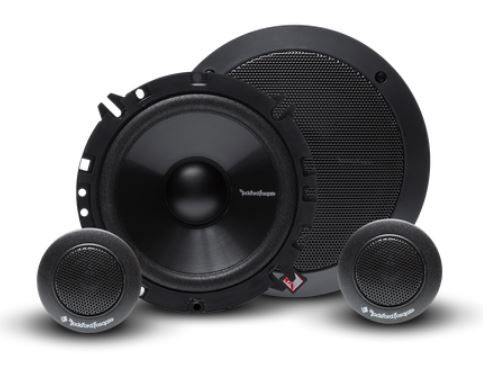

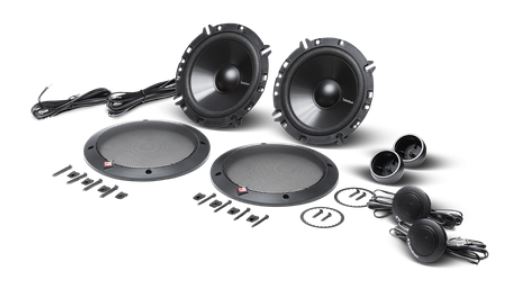

The PRIME series Component System kits are a new generation of factory replacement speaker delivering authentic Rockford Fosgate sound. The R152-S is a dedicated 2-way component system utilizing a Mica injected polypropylene cone for extended frequency response and accommodates direct OEM installation. The tweeter features a Mylar® balanced dome to reproduce crystal clear highs, an in-line crossover for simplifying installation, and accommodates flush, surface and angle mounting.

• 1/2" (13mm) mylar balanced dome tweeter
• Foam surround
• Mica-injected polypropylene cone
• Stamped steel basket
• 1 Year Warranty

• Speaker Type

  Component System

  Nominal Impedance (Ohms)

  4-Ohm

  CEA-2031 Compliant



  Midrange Size
  (Nominal Diameter)

  5.25"

  Midrange Mounting Depth

  1.91" (48.5 mm)

  Tweeter Size
  (Nominal Diameter)

  0.5" (13 mm)

  Tweeter Mounting Depth

  1.06" (26.88 mm)

  Power Handling (RMS)

  40 Watts RMS
  80 Watts Max

  Grille/Trim Ring Included

  Yes

  Mounting Hardware

  Yes

  Shipping Weight

  3.64 Lbs. (1.65 kg.)

  Frequency Response (Hz)

  58Hz - 20kHz

  Crossover

  Tweeter High-Pass (HP): 4.5kHz @ 6dB/octave

  Sensitivity
  (dB @ 1W/1M)

  85
